Disabling Air Bag System (Pilot)

WARNING: This page does not describe the selected car, but rather 173 other vehicles, including the 2003 Volvo XC90, 2003 Volvo XC70, 2003 Volvo V70, 2003 Volvo V40, and 2003 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Obtain radio anti-theft code from vehicle owner and write down preset radio frequencies. Ensure ignition is OFF. Disconnect negative battery cable. WAIT at least 3 minutes.
  2. Remove access panel from under steering wheel. Disconnect 4-pin connector between driver's air bag module and cable reel. See Figure and Figure . When disconnected, air bag connector power and ground terminals are automatically shorted together.

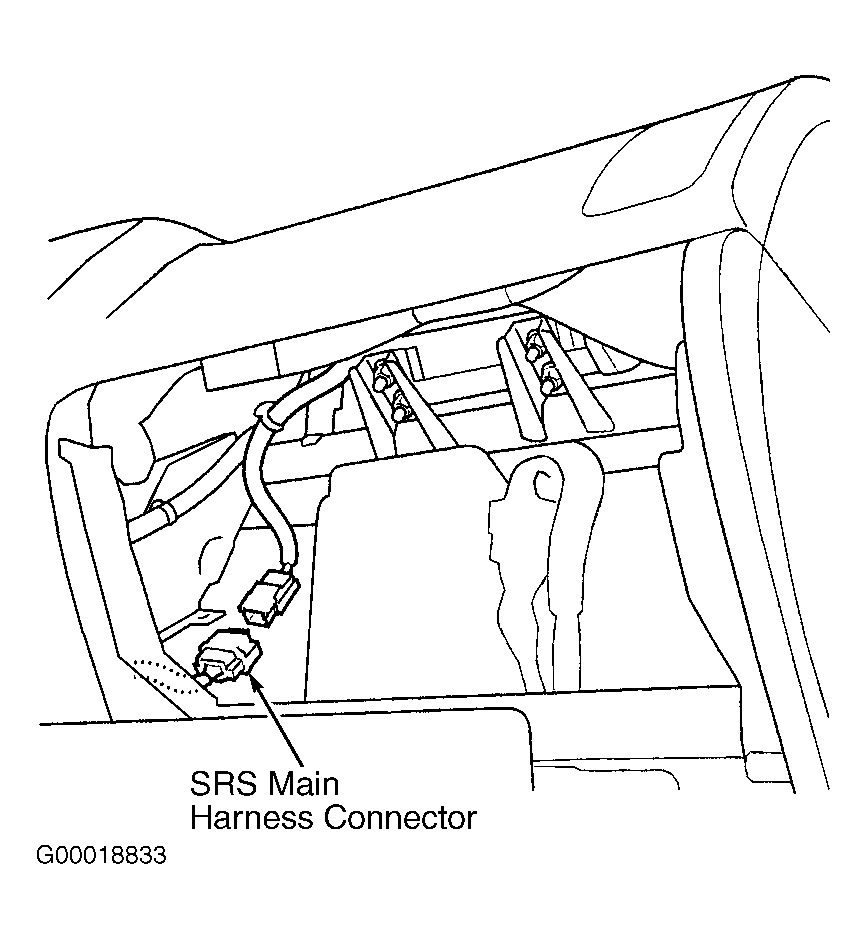

  3. Remove glove box. Disconnect 4-pin connector between passenger's air bag module and SRS main harness. See Figure and Figure . When disconnected, air bag connector power and ground terminals are automatically shorted together.
  4. Disconnect 2-pin side air bag module connectors under front seats. On driver's side, connector is near front, lower left corner under seat. On passenger's side, connector is near front, lower right corner under seat.

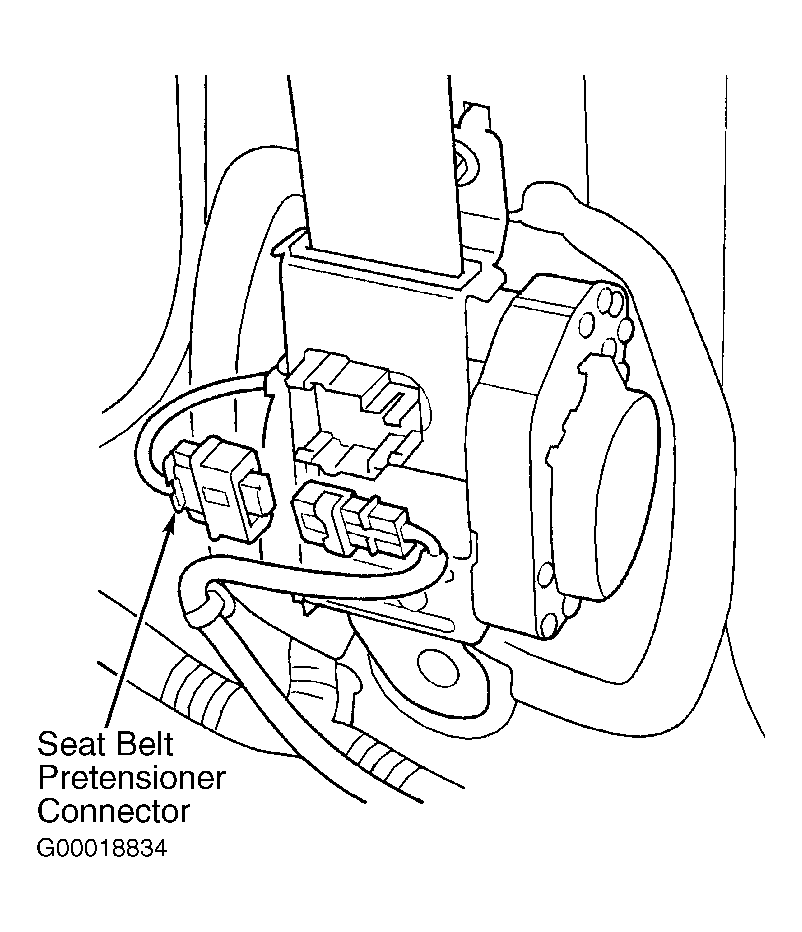

  5. Remove left and right "B" pillar trim panels. Disconnect 2-pin connector between both front seat belt pretensioners and SRS main harness. See Figure. When disconnected, seat belt pretensioner connector power and ground terminals are automatically shorted together.
