Removal (4WD)
WARNING: This page does not describe the selected car, but rather 48 other vehicles, including the 2006 BMW M3, 2006 BMW 330xi, 2006 BMW 330Ci, 2006 BMW 325xi, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front wheels. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
- Remove all underbody protection panels. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01) Remove acoustic insulation from engine carrier. See 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT
- If replacing power steering gear, determine measurement (A) on left and right to make wheel alignment easier. Grip steering tie rod and release clamping nut. Screw off tie rod by turning tie rod. See Figure.
- If not replacing power steering gear, release nut and remove tie rod on left and right with special tool (32 3 090). See Figure.
- Remove clamping screw and force disk joint off steering gear.

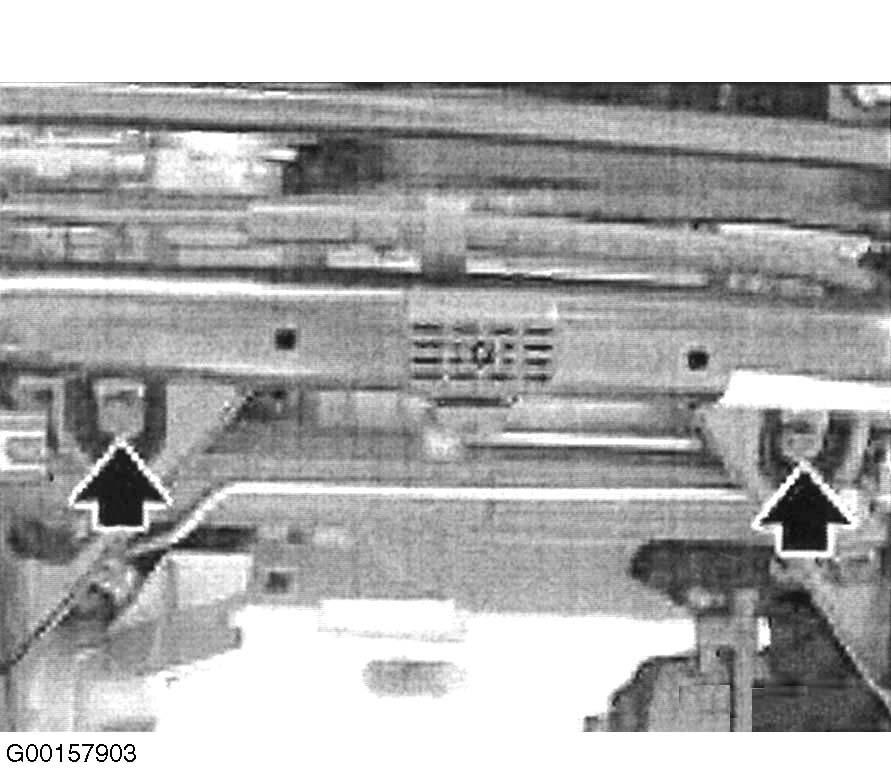

- Brace front axle support with workshop hoist. Detach front axle support from engine carrier and lower approximately.8" (20 mm). Release screws and remove steering gear. See Fig 1.
