Removal & Installation

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column to "bottom" and "extended" position.
Knock through pin (1) on both expansion rivets (2) towards interior. See Fig 1.
Press both sides of marked area of upper section of steering column trim inwards and pull lower section downwards to remove. See Fig 2.
To install, reverse removal procedure. Expansion rivets can be used again. Insert expansion rivet (2) and push in pin (1) until flush. See Fig 1.

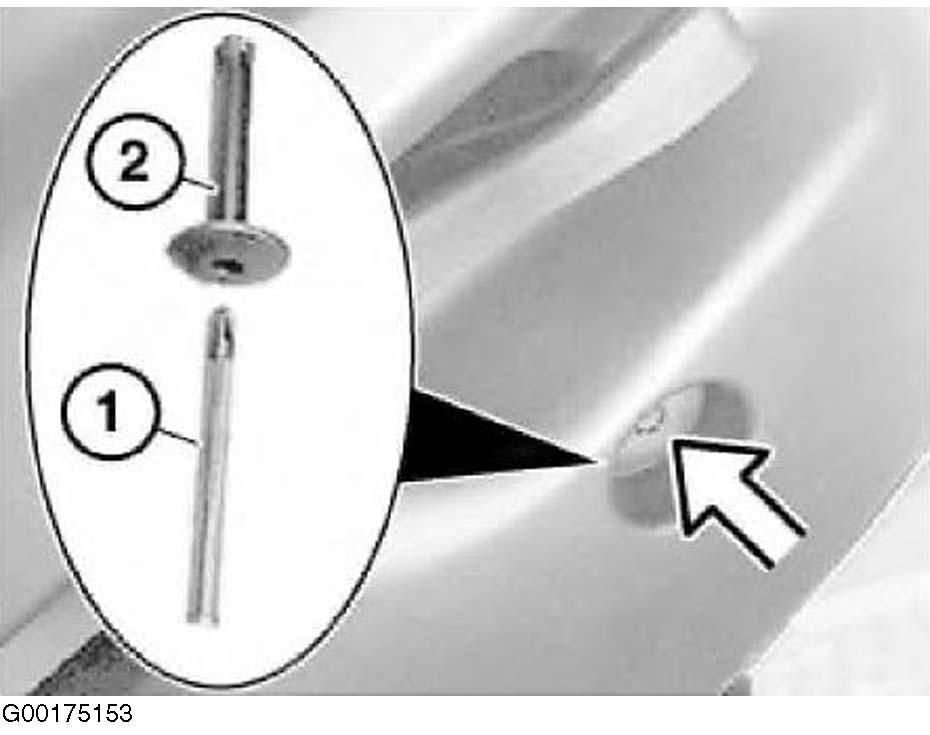

Fig 1: Locating Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

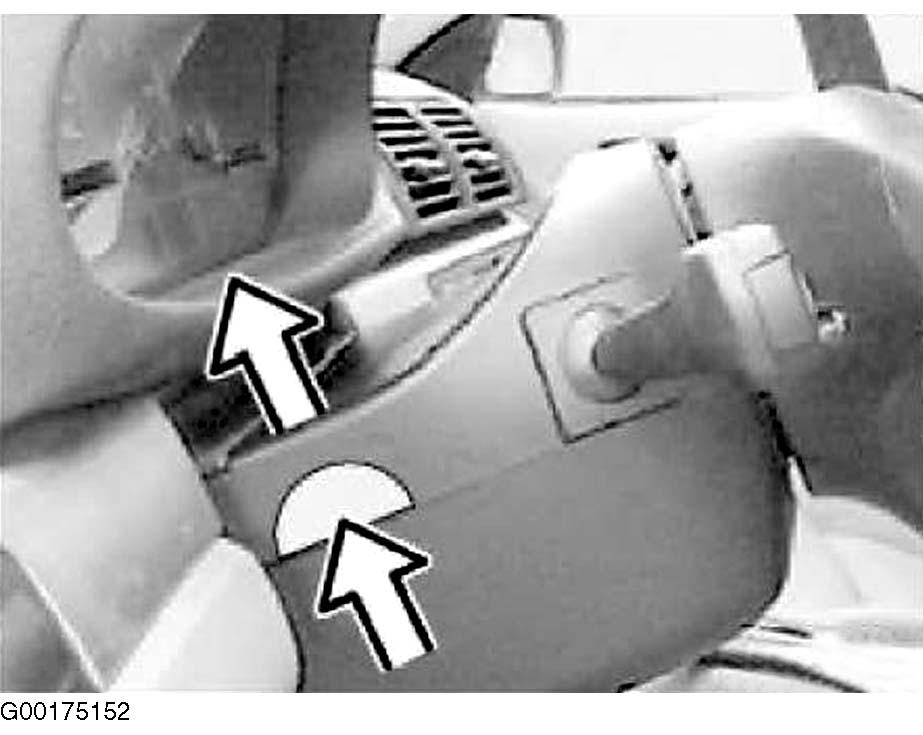

Fig 2: Removing Upper Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.
