Double Joint For Steering Spindle Lower Section (4WD): Removal

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Remove underbody protection at center. See REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE ON FRONT AXLE SUPPORT
Remove suction filter housing. See MICROFILTERS
Remove lower clamping screw of clamping element from steering gear. Detach clamping piece from steering spindle. See Fig 1.
Remove clamping screw from universal joint of steering spindle lower section. See Fig 2.
Remove double joint with steering spindle lower section.
Remove clamping screw. Detach double joint. See Fig 3.

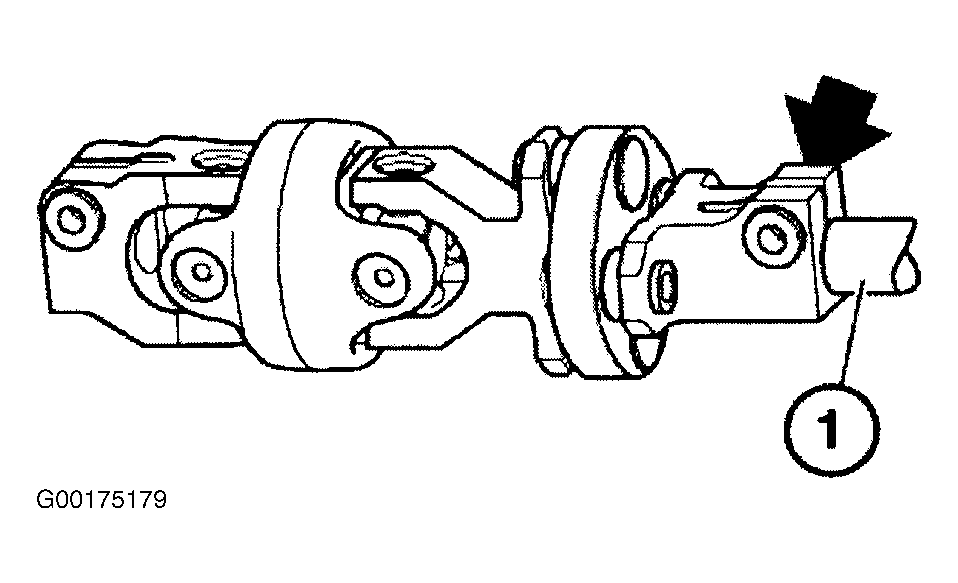

Fig 1: Removing Lower Clamping Screw

Courtesy of BMW OF NORTH AMERICA, INC.

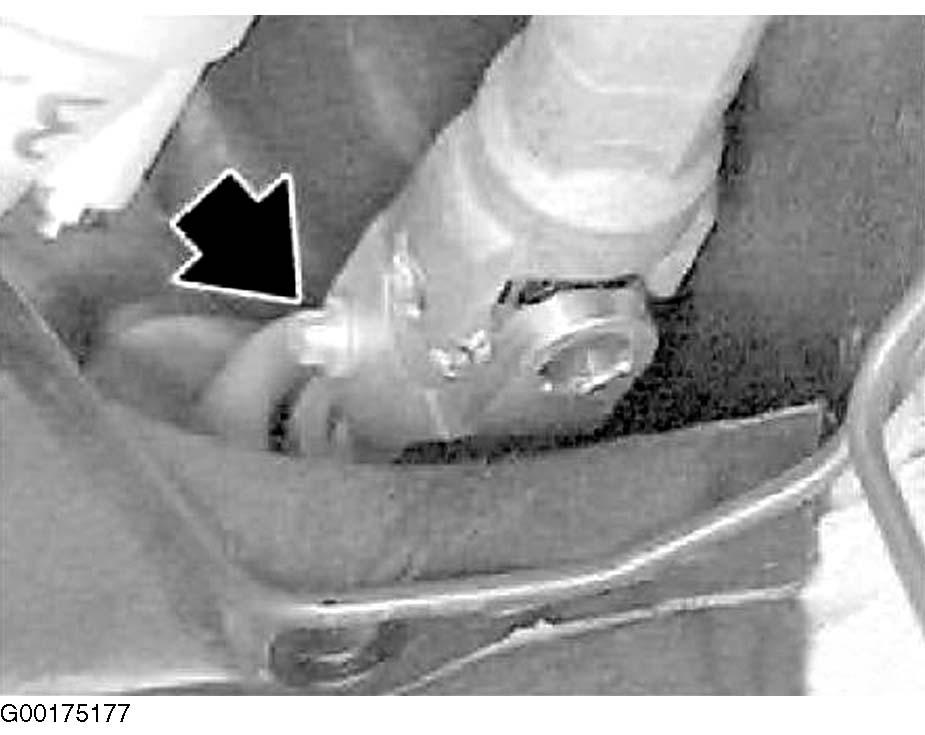

Fig 2: Removing Steering Spindle Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

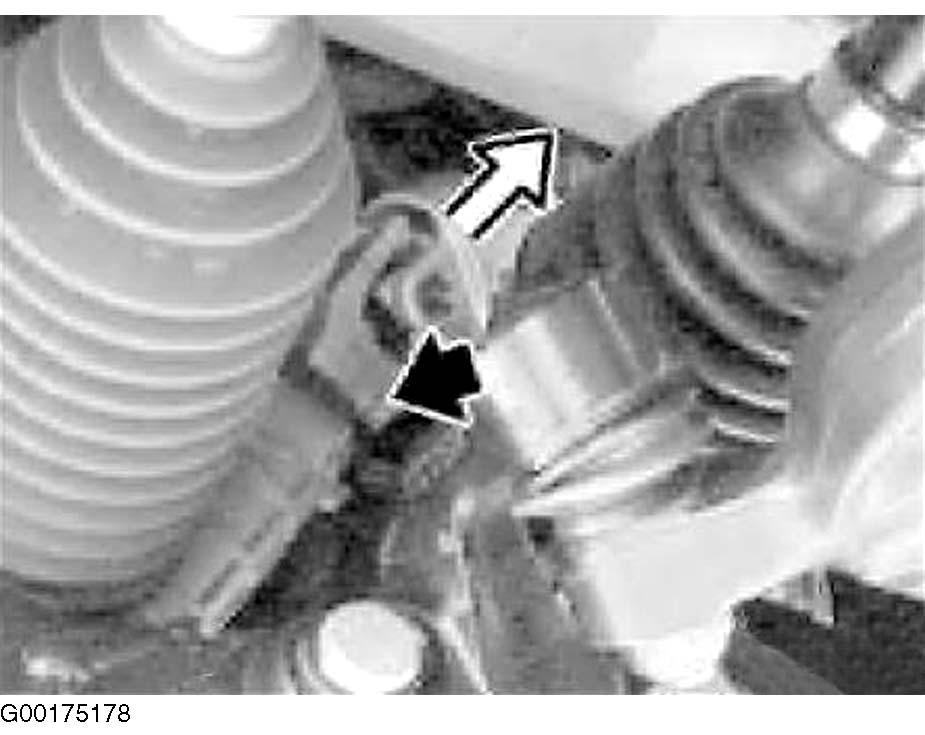

Fig 3: Locating Double Joint Clamping Screw

Courtesy of BMW OF NORTH AMERICA, INC.
