Tightening the screw connections to the trailing arm
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

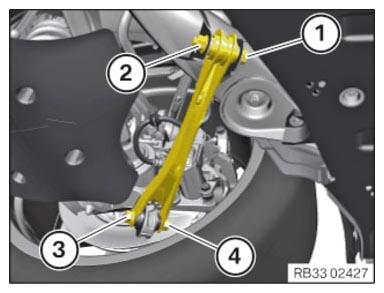

- Slacken screw (1) by a turn and tighten it. In doing so, counter support at the nut (2).TIGHTENING TORQUES SPECIFICATION
Trailing arm to rear axle support M12
Replace screw and nut.
Tighten in normal position.tightening torque 100 Nm - Slacken screw (3) by a turn and tighten it. In doing so, counter support at the nut (4).TIGHTENING TORQUES SPECIFICATION
Trailing arm to wheel carrier M12
Replace screw and nut.
Tighten in normal position.tightening torque 100 Nm
