Tightening the screw connection on the wheel carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

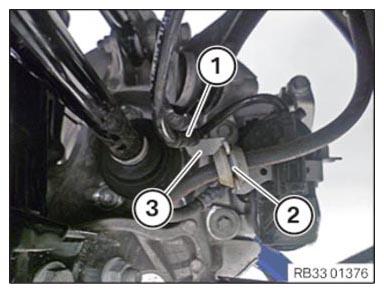

- Detach the cable (1) for the electromechanical parking brake and brake hose (2) from the holder (3).NOTE: TECHNICAL INFORMATION

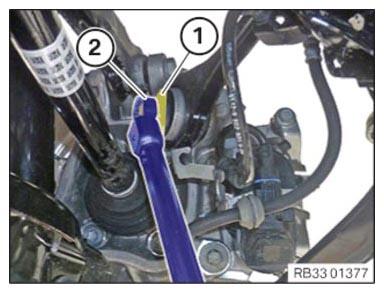

Tighten the screw connection in the normal position. - Release screw (1) using standard tool (2) with a turn and tighten it.

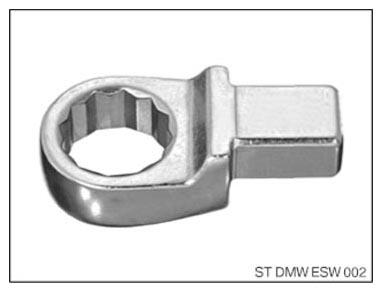

Standard tool: Ring insert tool for double hexagon head
Ring insertion tool for external double hexagon
Ring insertion tool for external double hexagon
TIGHTENING TORQUES SPECIFICATIONControl arm to wheel carrier M14
Replace screw.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° - Fasten the cable (1) for the electromechanical parking brake and brake hose (2) on the holder (3).
