Tightening the control link on the rear axle support in normal position

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.

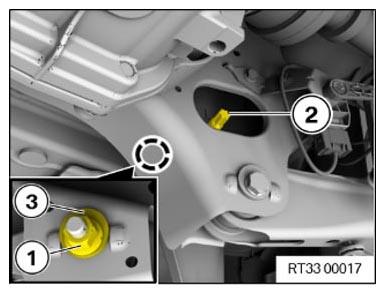

Release nut (1) one revolution.
Position the eccentric disc (3) correctly.

Use the eccentric screw (2) as a counter support and tighten the nut (1) to normal position.

TIGHTENING TORQUES SPECIFICATION

Control link to rear axle support
M12 Replace the eccentric screw, eccentric washer and nut. Tighten in normal position.	tightening torque	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
