Tighten the screw connection on the rear axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the normal position.
Tighten the screw connection in the normal position.

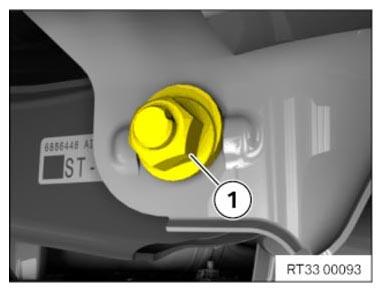

- Release nut (1) and tighten it by a turn. Provide counter support to the eccentric screw in the process.
TIGHTENING TORQUES SPECIFICATION
| Camber control arm to rear axle support | ||
| M14 Replace the eccentric screw, nut, and eccentric washer. Tighten in normal position. |
tightening torque | 175 Nm |
