Removing ultrasonic sensors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

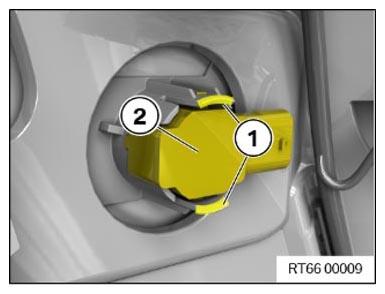

- Unlock the detents (1) and release the ultrasonic sensor (2) from the bumper cover.
- Perform the steps on all other ultrasonic sensors.
