Removing the left and right retaining frame

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the retaining frame

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

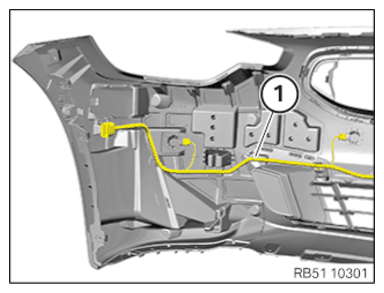

Unlock all plug connections and disconnect.
Release wiring harness (1) from all the clips and remove it from the working area.

Courtesy of BMW OF NORTH AMERICA, INC.

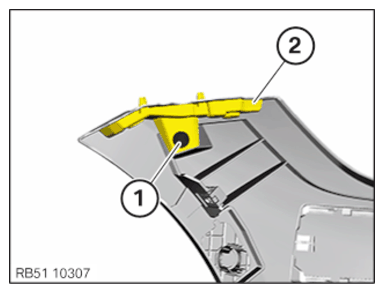

Loosen screw (1).
Guide out and remove reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

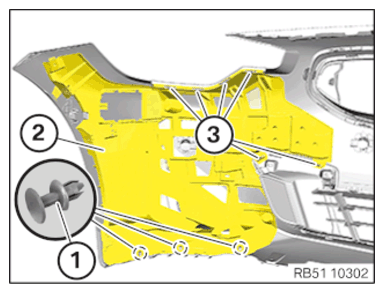

Loosen the expanding rivet (1).
Release the retaining frame (2) from the detents (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
