Removing the left and right fanfare horn
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the fanfare horn
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.

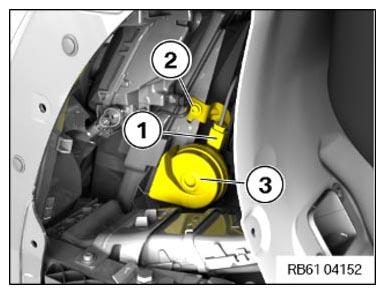

- Unlock plug connection (1) and disconnect.
- Release the screw (2) and remove the fanfare (3) with the holder.
