Remove the right door sill trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Remove the door sill trim panel

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

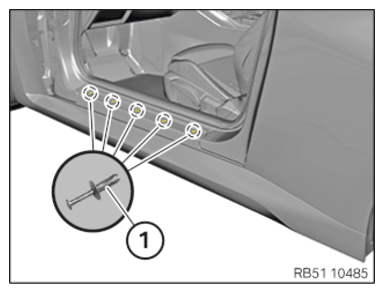

Release the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

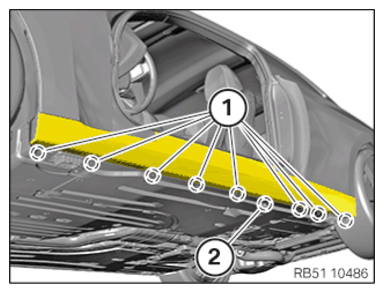

Loosen screws (1).
Release nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

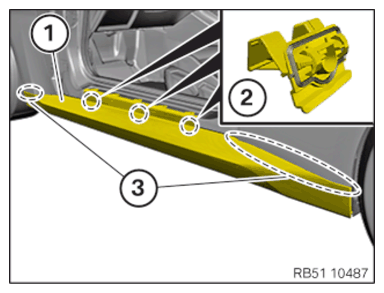

Release the door sill trim panel (1) with a suitable tool from the clamps (2).
Release the door sill trim panel (1) at the rear starting from the detents in the areas (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
