Remove side trim panel, rear left and right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Remove rear side trim panel
Precondition
The rear seat is folded down.

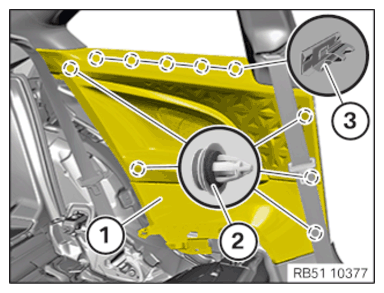

- Unclip the rear side trim panel (1) from clips (2) using a suitable tool.
- Unclip and guide out the rear side trim panel (1) from clamps (3) using a suitable tool.
- Unlock and disconnect all the plug connections of the wiring harness from the rear side trim panel (1).
