Remove rear section of the front right wheel arch cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the rear section of the front wheel arch cover front
NOTE:

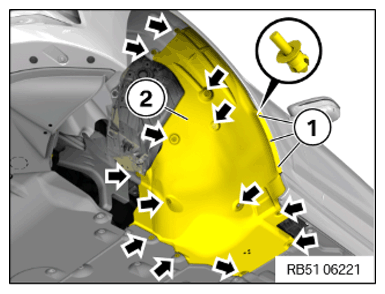

To provide a better overview: Schematic diagram with partially hidden components.
- Loosen the expanding rivet (1).
- Remove screws (arrows).
- Removing the
rear section of the front wheel arch cover front (2).
