Remove impact absorber

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

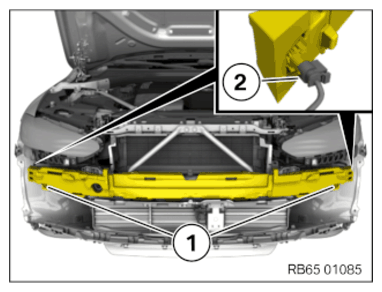

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Release the expanding rivet (1).
Unlock plug connections (2) and disconnect.
Feed out and remove the impact absorber on the support.

Courtesy of BMW OF NORTH AMERICA, INC.
