Releasing the left or right output shaft from the rear axle differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Detach the output shaft from the rear axle differential
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.

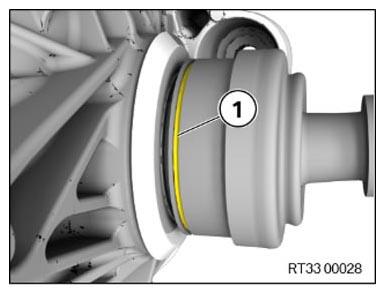

- Position the special tool described below on the circumferential slot (1) of the driven shaft.

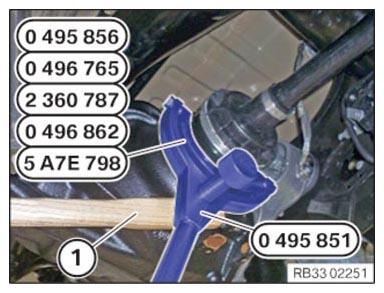

- Position special tool 0 495 851 (33 5 120) on the driven shaft with the appropriate special tool 0 495 856 (33 5 124) , 0 496 765 (33 5 126) , 0 496 862, 2 360 787 or 5 A7E 798 depending on the design version.
- Support special tool 0 495 851 (33 5 120)
against a standard tool (1) and press out the driven shaft from the rear axle differential with a jerk.
