Installing the trim in the water channel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

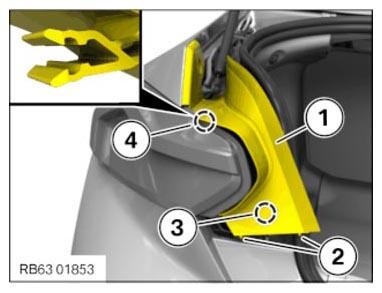

Position the trim (1) as pictured.
Engage the detent (4) on the tail light.
Swivel the lower section of the trim (1) in the direction of the tail light, use the guide (3) to insert into the tail light and use the guides (2) to insert into the bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

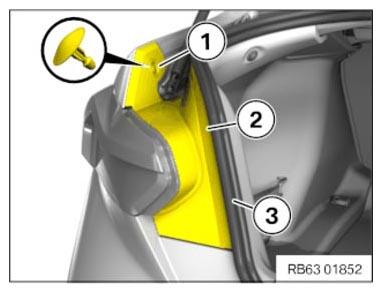

Feed in trim (2) in the area of the edge protection (3).
Clip in clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
