Installing the right front sill trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front sill trim

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

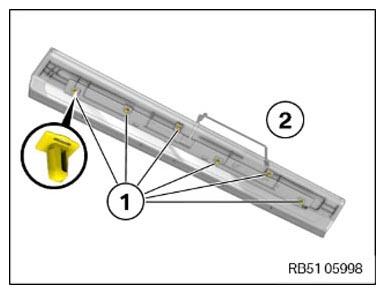

Check if clips (1) on the front sill trim (2) are missing or damaged and replace them if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

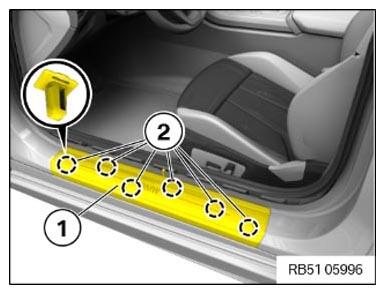

Correctly position the front sill trim (1).
Clip in the front sill trim (1) with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
