Installing the left and right fanfare horn

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the fanfare horn

NOTE: TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.

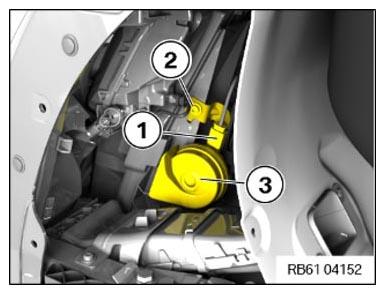

Position the fanfare horn (3) correctly and tighten the screw (2).

TIGHTENING TORQUES SPECIFICATION

Fanfare horn to support for bumper cover
M6x20 screw	Tightening torque	8.8 Nm

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
