Installing the front brake caliper (braking system remains closed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

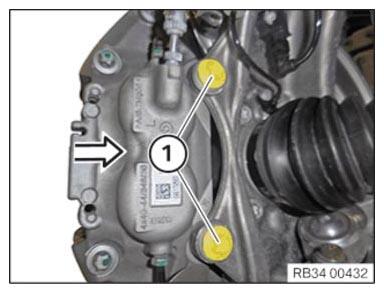

Install the brake caliper in the arrow direction.
Replace screws (1).
Parts: Screws
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
