Installing the decorative strip on the door trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Install the decorative strip (1) and snap it in at the detents (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

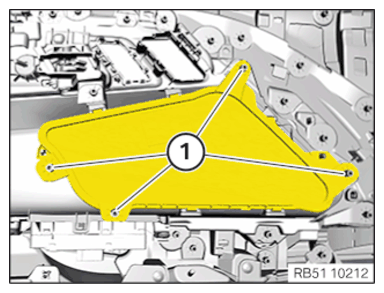

- Insert and tighten repair screws (1).
CONSUMABLE SPECIFICATION
Repair screw
Delta PT4 |
ø4 mm, l = 12 mm, |
07149200941 |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
 Courtesy of BMW OF NORTH AMERICA, INC.
|
TIGHTENING TORQUES SPECIFICATION
| Decorative strip on door trim panel |
| Screw |
Tightening torque |
1.0 Nm |
