Installing the dashboard trim
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Insert the dashboard trim in the vehicle and position on the support.
- Maneuver the corresponding wiring harnesses and connect and lock the connectors.

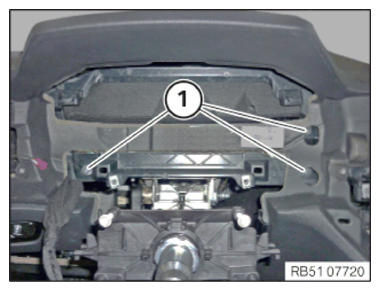

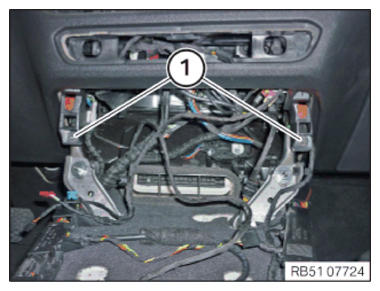

- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

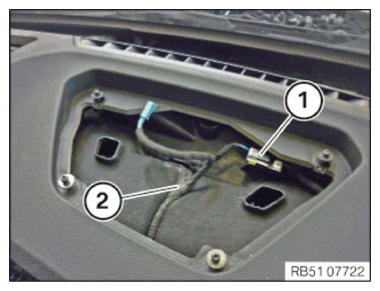

Dashboard to support Screw Tightening torque 2.6 Nm - Connect the connector (1) to the light operating unit and lock it.
- Attach the wiring harness (2) to the holders.
- Connect connectors (1) and lock.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

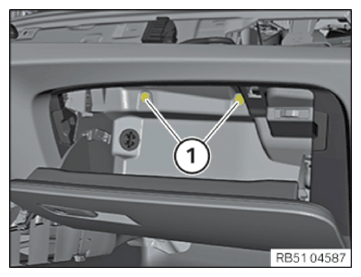

Dashboard to support Screw Tightening torque 2.6 Nm - Open glovebox.

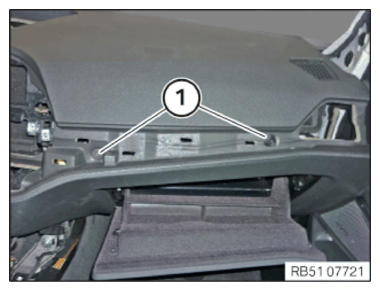

- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

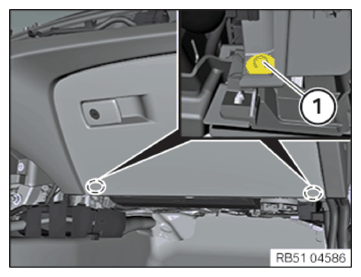

Dashboard to support Screw Tightening torque 2.6 Nm - Tighten the screws (1) on the underside of the glove box.TIGHTENING TORQUES SPECIFICATION

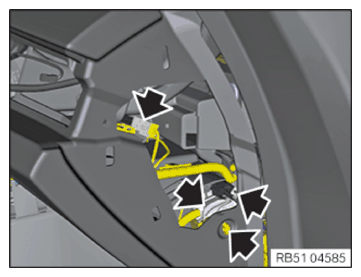

Dashboard to support Screw Tightening torque 2.6 Nm - Connect all plug connections and cable clips (arrows) behind the glove compartment.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

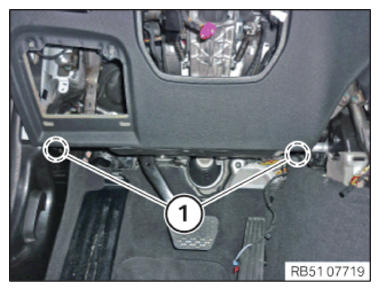

Dashboard to support Screw Tightening torque 2.6 Nm - Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

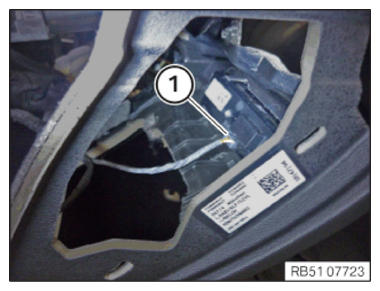

Dashboard to support Screw Tightening torque 2.6 Nm NOTE: Perform the steps on the right and left side. - Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION

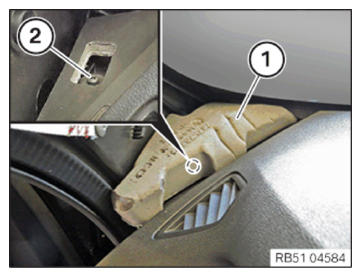

Dashboard to support Screw Tightening torque 2.6 Nm - Use sound insulation (1).
