Installing left and right retaining frame

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the retaining frame

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

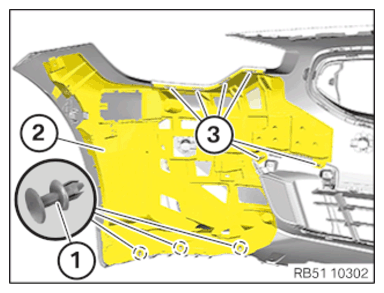

Position and clip in the retaining frame (2) at the detents (3).
Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

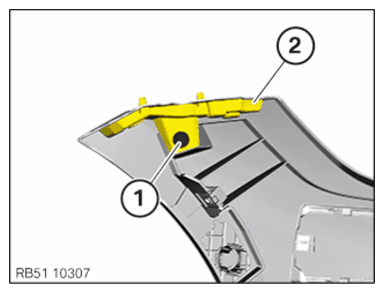

Guide in and position reinforcement (2).

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Reinforcement for bumper to retaining frame
Hexagon screw	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

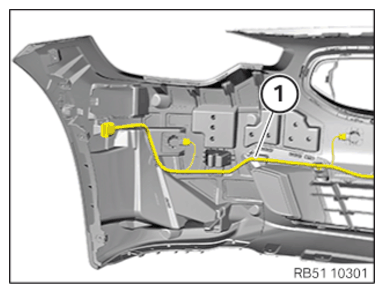

Position and clip in the wiring harness (1) at all clips.
Connect and lock all plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.
