Installing covers at front bottom on left an right sides

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

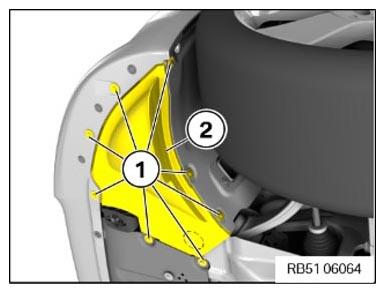

Installing bottom front cover from the side

Install the bottom front cover at side (2).
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Lower side cover at front
Hexagon screw for thermoplastic	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
