Install steering column shroud lower section

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

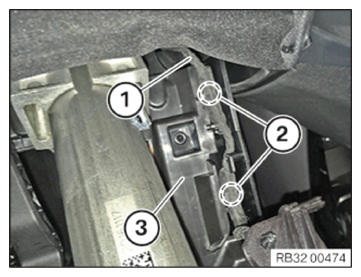

Position steering column shroud lower section (3).
Secure the line (1) on the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

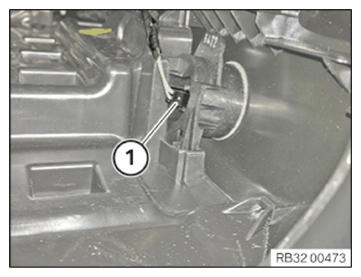

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

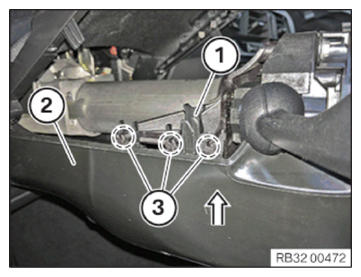

Align the steering column shroud lower section (2) to the steering column using the retaining lug (1).
Push the steering column shroud lower section (2) up in the direction of the arrow until the holders (3) engage.

Courtesy of BMW OF NORTH AMERICA, INC.
