Install right output shaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
TECHNICAL INFORMATION
If the driven shaft is reused, the circlip must be replaced.
If the driven shaft is reused, the circlip must be replaced.
NOTE:
TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed.
Check component and replace if necessary.
Extreme force being required during installation is an indication that the component is damaged or deformed.
Check component and replace if necessary.
- Check the gearing of the output shaft for damage and replace damaged parts if necessary.
- Check the bellows for damage and replace damaged parts as needed.
- If reusing the output shaft:

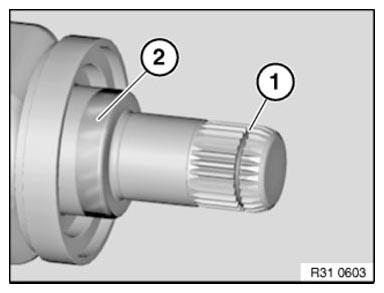

Replace the circlip (1).
Parts: Circlip
- Coat the contact surfaces (2) using approved final drive transmission oil.NOTE: TECHNICAL INFORMATION
The illustration shows the procedure on the front axle differential. The procedure on the bearing bracket is identical. - Fold open the assembly protection ring (1).

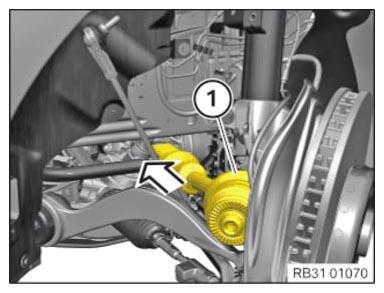

- Insert the output shaft (1) in the arrow direction in the front axle differential or the bearing bracket.
Do not yet engage the output shaft (1) in the front axle transmission or in the bearing bracket!

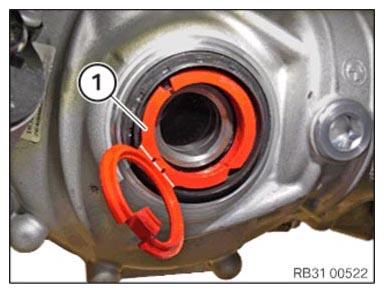

- Pull on the tab of the installation protection ring (1) until one of the two predetermined breaking points breaks.
- Pull out and dispose of the installation protection ring (1).

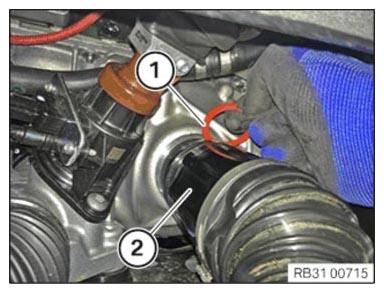

- Slide the output shaft (2) into the front axle differential up to the stop or the bearing bracket.
The output shaft (2) must snap in noticeably and audibly.

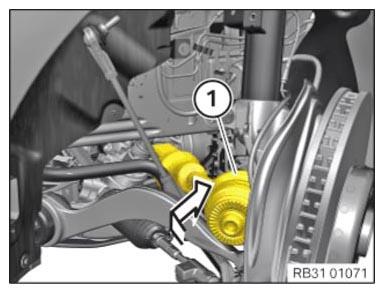

- Feed in the output shaft (1) at the swivel bearing.

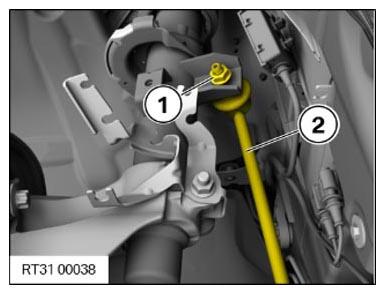

- Position the anti-roll bar link (2) on the spring strut.
- Replace nut (1).
Parts: Nut
- Tighten the nut (1), if necessary, counter support the Torx socket.TIGHTENING TORQUES SPECIFICATION
Front anti-roll bar link to anti-roll bar/spring strut M10

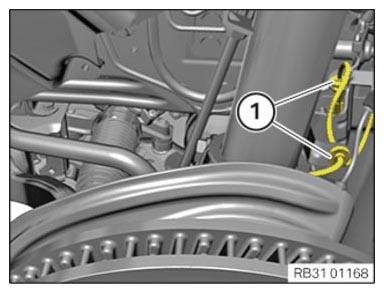

Replace nut.tightening torque 56 Nm - Secure the cable of the wheel speed sensor to the holders (1).
