Install driver's seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.- Remove and install heavy components with the aid of another person/other persons.

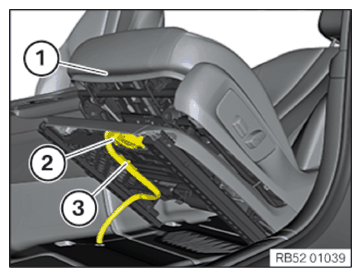

- Lift front seat (1) into the vehicle with the assistance of a support person.
- Place front seat (1) to the rear.
- Connect connectors (2) and lock.
- Check all plug connections for completeness, correct fit and locking where required.
- Attach the cable clip (3).
Activate vehicle-specific high-voltage or low-voltage electrical system
NOTE:
TECHNICAL INFORMATION
Follow the vehicle-specific instructions described in the additional information.
Follow the vehicle-specific instructions described in the additional information.
- On-board network according to the in the following
Activate the specifications described in the information.
Activating the 48 V electrical system
Precondition
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the 48-V battery
If a 48-V battery disconnected from the on-board electrical system is activated, the battery electronics are damaged.
Damage to the 48-V battery
If a 48-V battery disconnected from the on-board electrical system is activated, the battery electronics are damaged.
- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.
- Raise the battery ground cable.
- Remove special tool 2 452 007.
- Release the negative battery cable of the 48-V battery from the attachment.
- Position the negative battery cable of the 48-V battery on the negative battery terminal.
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Negative battery cable to 48-V battery Nut M8 Tightening torque 19 Nm - Connect the connector of the CAN bus and lock it.
- Clip in clip.

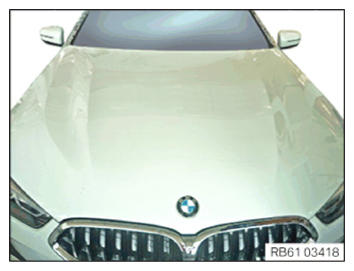

- Activate the 48 V electrical system by closing the hood.
Activation is automatic.

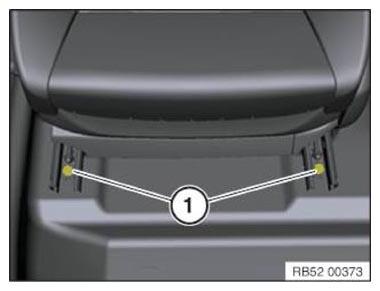

- Shift front seat rearwards.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Seat to body Cheese head screw with collar

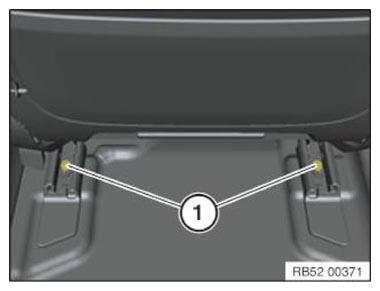

Replace screw.Tightening torque 42 Nm - Shift front seat forwards.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Seat to body | ||
| Cheese head screw with collar Replace screw. |
Tightening torque | 42 Nm |
