Install bearing bracket

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

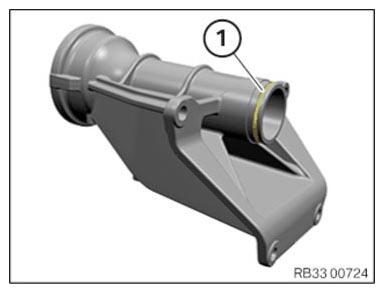

Coat the O-ring (1) with front axle transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.

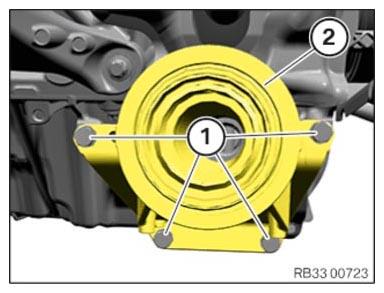

Position the bearing bracket (2) at the engine oil pan.
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Bearing bracket to engine oil pan.
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
