Inserting the left output shaft in the rear axle differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for right component only. The procedure on the left side is identical.
Feeding the output shaft into the rear axle differential

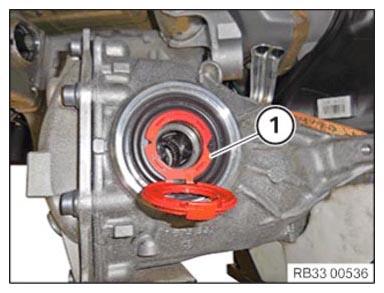

- Fold open the assembly protection ring (1).

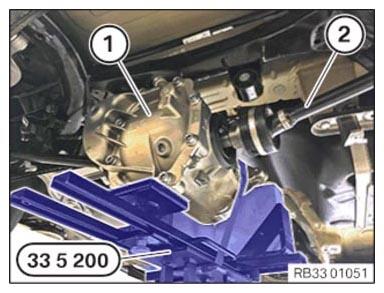

- Turn the rear axle differential (1) with the special tool 0 496 009 (33 5 200)
to the left. While doing so feed in the output shaft (2).

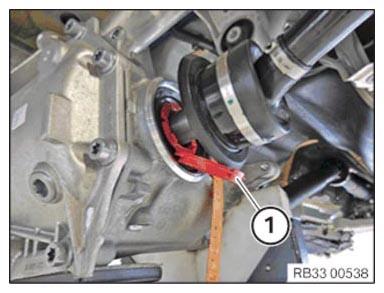

- Pull on the lug of the installation protection ring (1) until one of the two predetermined breaking points breaks.
- Pull out and dispose of the installation protection ring (1).
