Fastening the coolant expansion tank of high-temperature coolant circuit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Do not disconnect the coolant lines.
Do not open the coolant circuit.
Do not disconnect the coolant lines.
Do not open the coolant circuit.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

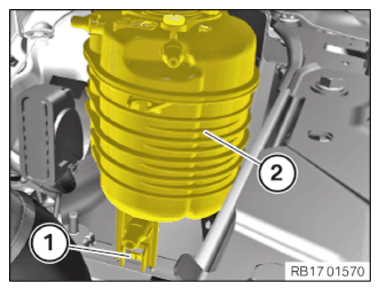

- Insert the coolant expansion tank (2).
- If necessary, lock the lock (1).

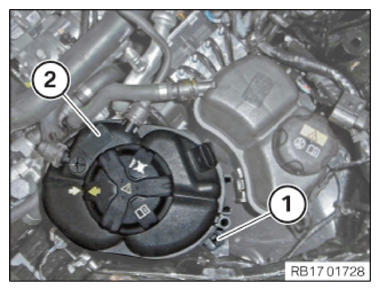

- Correctly position the coolant expansion tank (2) for the high-temperature coolant circuit.
- Lock the lock (1).

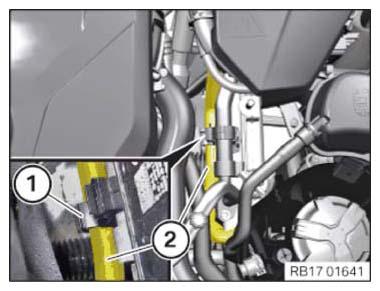

- Feed in and position the coolant line on the bracket (1).
- Lock holder (1).

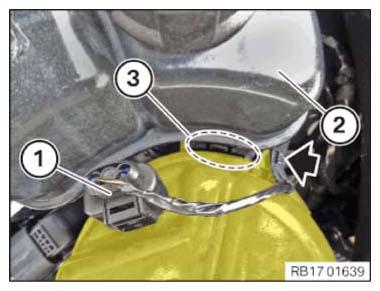

- Insert and install the coolant expansion tank (2) for the low-temperature coolant circuit in the brackets.
The lock (3) must audibly engage.
- Secure clamp (arrow).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
