Distinguishing the calipers from different manufacturers
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Pay attention to the different tightening torques of the bleed valves!

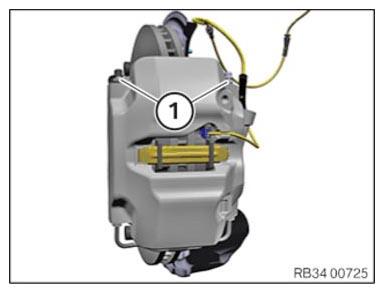

- Picture shows fixed caliper of the manufacturer Brembo.
- There is a bleed valve (1) on the inside and on the outside for bleeding the brake caliper.TIGHTENING TORQUES SPECIFICATION
Front bleed valve from brake caliper manufacturer Brembo Bleed valve tightening torque 18 Nm - Pay attention to the different tightening torques of the bleed valves!
- Picture shows fixed caliper of the manufacturer Continental.
- There is a bleed valve (1) on the inside and on the outside for bleeding the brake caliper.
TIGHTENING TORQUES SPECIFICATION
| Fixed caliper front bleed valve from brake caliper manufacturer Continental | ||
| Bleed valve | tightening torque | 15 Nm |
