Dashboard protection for vehicle window removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Dashboard protection for vehicle window removal

G14932621Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 83 30 2 337 983

The dashboard protector made of 2-mm thick plastic is elastic and molds itself to the curvature of the window. The material is resistant and hard so that the cutting and sawing wires can glide over it. The dashboard protector can be applied universally due to its special form. In combination with double suction cups, the dashboard protector can be used anywhere on the vehicle window.

Scope of delivery:

The dashboard protector is supplied along with two double suction cups.

Application examples

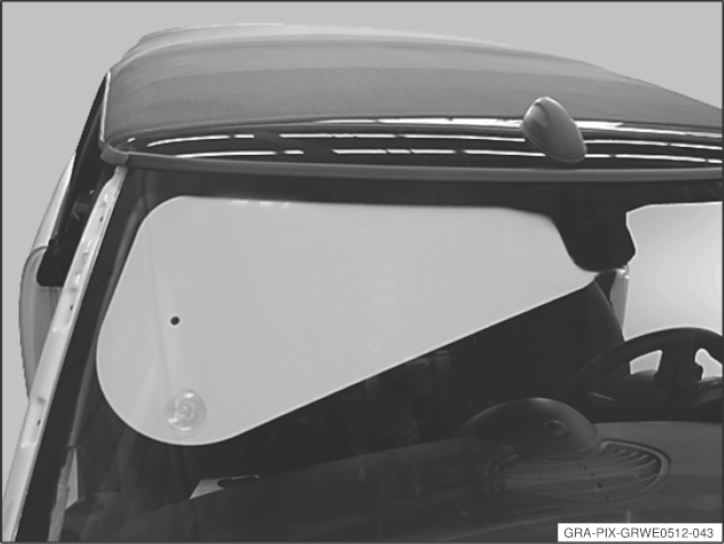

G14932622Courtesy of BMW OF NORTH AMERICA, INC.

The roofliner, side trim panel or sun visor can be protected against damage.

G14932623Courtesy of BMW OF NORTH AMERICA, INC.

When removing the vehicle widow, the dashboard can be protected against damage.
