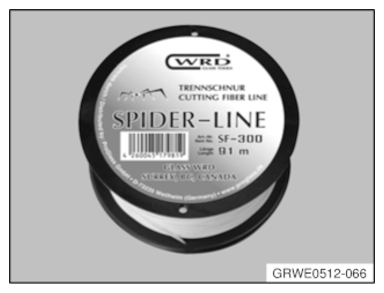

Cord for separating adhesions

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 81 43 2 344 272

NOTE: The cord is used in combination with the wire pulling handle with suction unit set, order number 81 43 2 326 501.

Technical data:

The cord length is 91 m.

The cord has a tensile strength of approx. 110 N. This pertains to an unused cord to which a linear load has been applied. When a adhesive bead is cut, various loads arise so that the above specified values may differ in actual use.

Application:

In the following section, the approved applications for the cord are described.

Detailed and vehicle-related applications are contained in the repair instructions of the individual vehicles.

Courtesy of BMW OF NORTH AMERICA, INC.

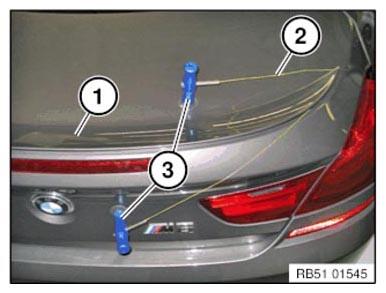

Repair instructions 51 71 407 Removing the rear spoiler:

Cut through bonding surface of rear spoiler (1) with cutting cord (2) and wire pulling handles (3).

Courtesy of BMW OF NORTH AMERICA, INC.

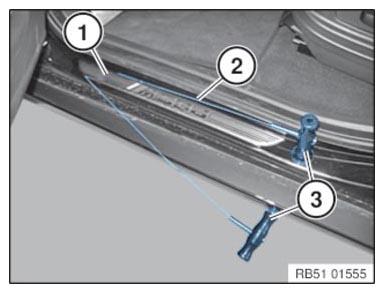

Repair instructions 51 47 065 and repair instruction 51 47 072 Removing and installing/replacing cover at front left or right entrance:

Sever the double-sided adhesive tape of cover (1) with cutting cord (2) and wire pulling handles (3).
