Attaching the left or right output shaft to the rear axle differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Secure the output shaft on the rear axle differential

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

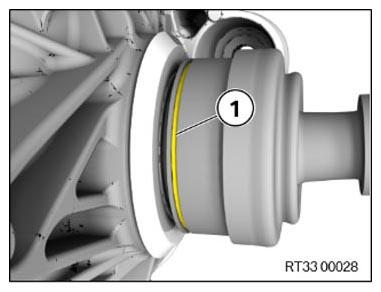

Position the special tool described in the following at the circumferential slot (1) of the driven shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

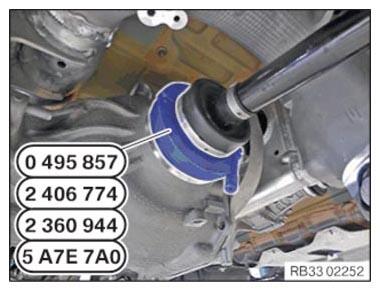

Use the appropriate special tool 0 495 857 (33 5 125), 2 406 774, 2 360 944 , or 5 A7E 7A0 and a rubber mallet to pound the driven shaft into the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.
