Adjust the LED module for the light carpet
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

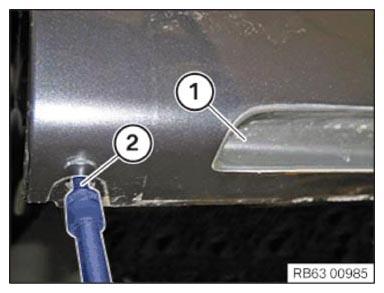

- Adjust the LED module (1) by turning the adjustment screw (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

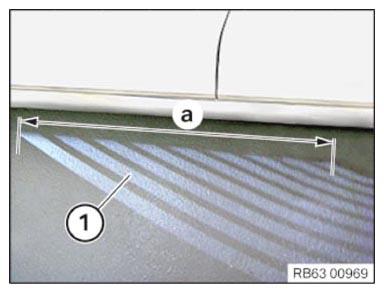

- Adjust the light carpet (1) to the specified length dimension (a).
TECHNICAL DATA SPECIFICATION
| Light carpet length |
| |
Length (a) |
130 cm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
