Removing the holder of the positive battery cable
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

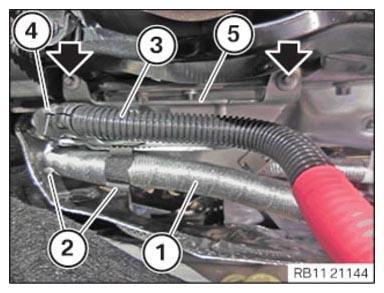

- Version A (without mild hybrid technology)
Remove positive battery cable (1) from clamps (2).
Release the positive battery cable (3) from the clamp (4).
Remove screws (arrows).
Feed out the bracket (5) of the positive battery cable and set it aside.

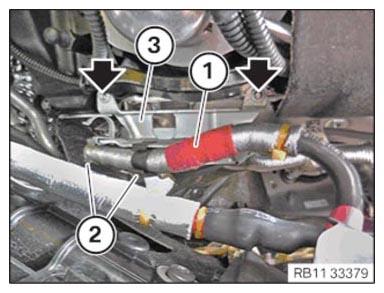

- Version B (with mild hybrid technology)
Remove positive battery cable (1) from clamps (2).
Remove screws (arrows).
Feed out the bracket (3) of the positive battery cable and set it aside.

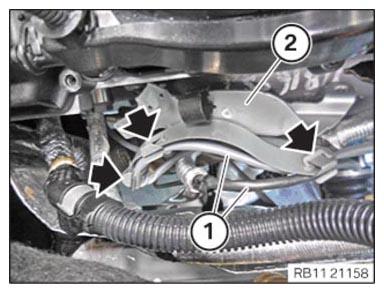

- Release the both cables (1) from the clamps (arrows).
- Feed out and remove the bracket (2) of the positive battery cable.
