Removing the front output shafts (on the mobile lifting table)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

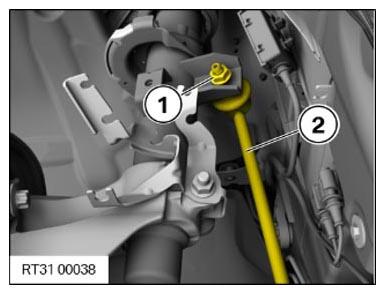

- Release nut (1). When doing this, counter support at the Torx socket if necessary.
- Detach the anti-roll bar link (2) from the spring strut.

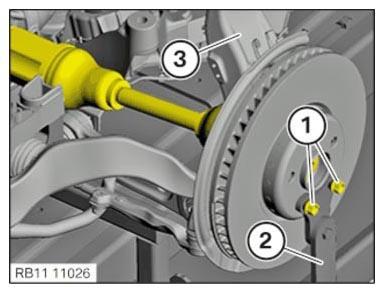

- Loosen screws (1).
- Remove the swivel bearing mount (2) and set it aside.
- Hold the swivel bearing (3) with the workshop crane 2 220 718.

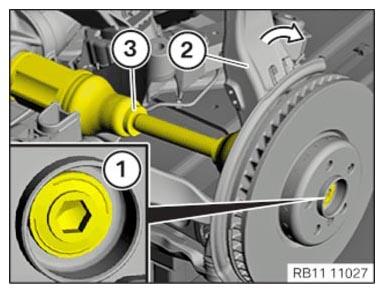

- Loosen screw (1).
- Tilt the swivel bearing (2) slightly forwards in the direction of the arrow.
- Loosen and remove the output shaft (3) at the front axle differential with a suitable tool.

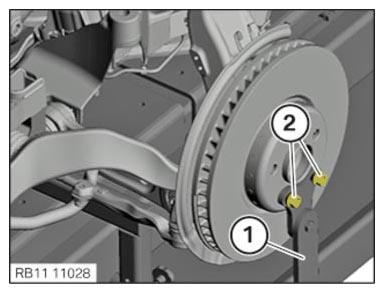

- Install the stand (1) of the swivel bearing.
- Tighten down screws (2).
