Relieving tension on coil spring
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

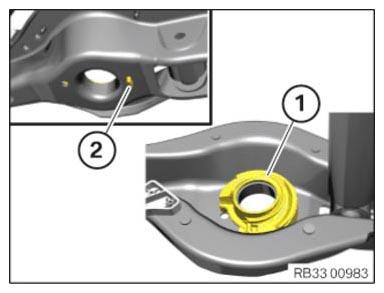

- Check the bottom spring pad (1) for damage and replace if necessary.
- Check the position of the bottom spring pad (1) with the plastic tab (2) on the camber control arm and correct if necessary.

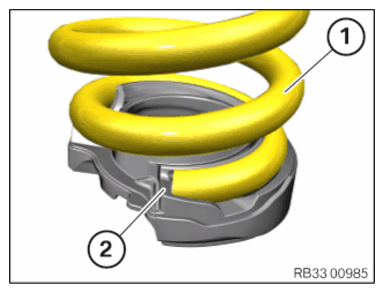

- Position the coil spring (1) in such a way that the coil spring end is in form-fit contact with the lower spring pad (2).

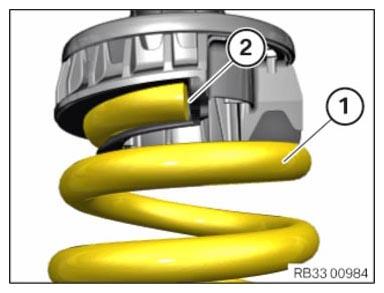

- Position the upper spring pad on the coil spring (1) such that the coil spring end (2) is in form-fit contact with the upper spring pad.

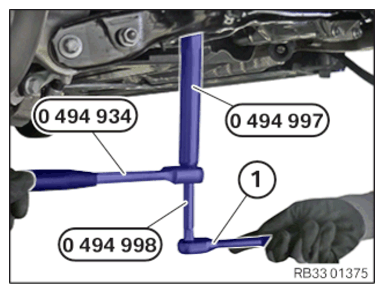

- Slacken the coil spring with the special tools 0 494 997 (33 5 016)
and 0 494 934 (33 5 020).
Provide counter support to the spindle using special tool 0 494 998 (33 5 017)
and standard tool (1) in the process.

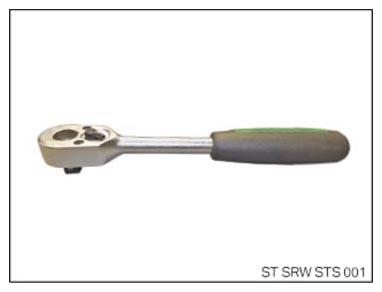

Standard tool: 3/8" reversible ratchet
3/8" reversible ratchet
3/8" reversible ratchet
Pay attention to the installation position when releasing the coil spring, correct if necessary.
- Remove the special tools.
