Mounting the oil filter element in the oil filter cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

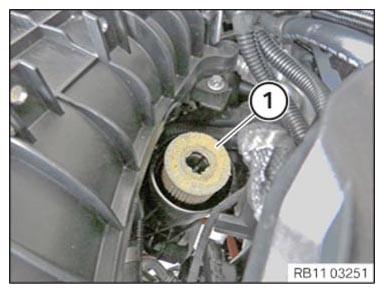

- Remove the oil filter element (1).
- Replace the O-ring (1) and the oil filter element (2).
Parts: O-ring, oil filter element

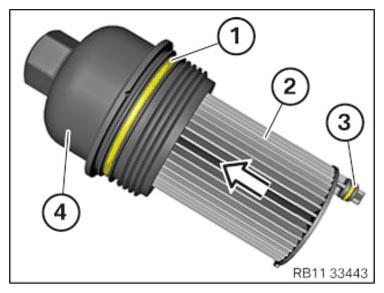

- Make sure that the O-rings (1) and (3) are installed correctly.
- Coat the O-rings (1) and (3) with motor oil.
- Feed in and install the oil filter element (2) in arrow direction
on the oil filter cover (4).
The oil filter element (2) must engage audibly.
