Lowering rear exhaust system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavyweight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

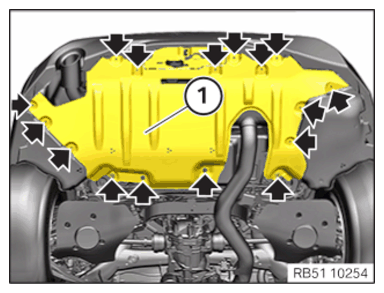

Loosen nuts and bolts (arrows).
Feed out and remove the diffuser (1) at the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

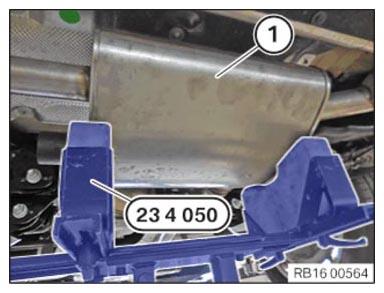

Support rear silencer (1) with the transmission jack and special tool 0 495 498 (23 4 050).

Courtesy of BMW OF NORTH AMERICA, INC.

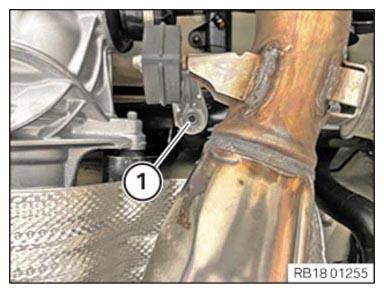

Release the nut (1) on the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

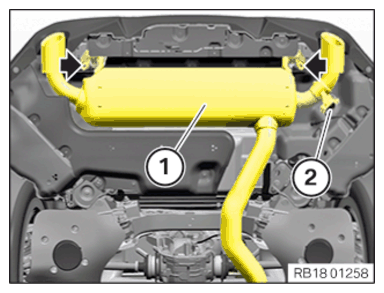

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.
Unlock plug connection (2) and disconnect.
Unscrew the nuts (arrows).
Lower the exhaust system (1).

Courtesy of BMW OF NORTH AMERICA, INC.
