Locking the delivery unit (vehicles without stationary heating)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

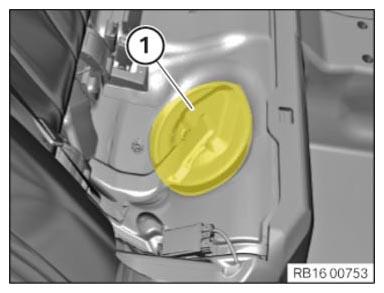

Open up the floor trims in the area (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

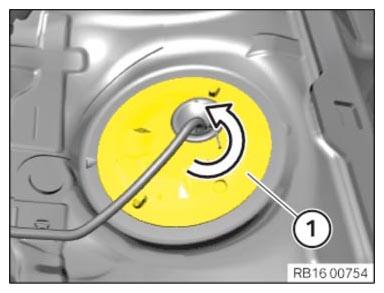

Turn the sealing cap (1) in arrow direction (counter-clockwise).

Courtesy of BMW OF NORTH AMERICA, INC.

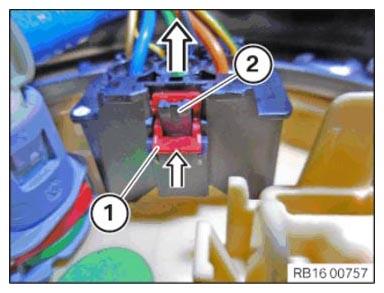

Unlock the locking tab (1) in arrow direction.
Operate the latch (2) and detach the connector housing.

Courtesy of BMW OF NORTH AMERICA, INC.

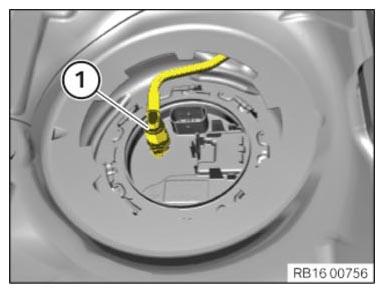

Unlock and detach snap fastener (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with optional equipment 1AK (external fuel filter).

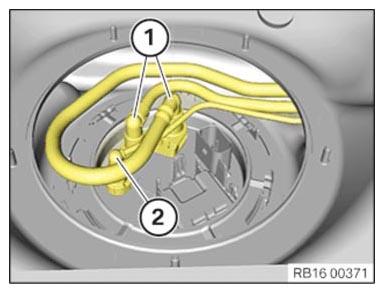

Unlock and detach the snap fasteners (1).

If necessary, unlock and detach the snap fastener (2) for the pre-heating.

Courtesy of BMW OF NORTH AMERICA, INC.
