Installing the wiring harness (M Sport steering wheel)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replace wiring harness (1).
Parts: Wiring harness

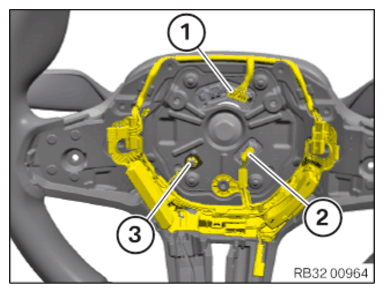

Position the wiring harness (1) holders to the steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and attach the wiring harness on the steering wheel.
Attach the eyelet of the ground cable (3) to the steering wheel.
NOTE: The loop of grounding cable (wiring harness) cannot be reused.
Connect and lock the connector (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
