Installing the right rear cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

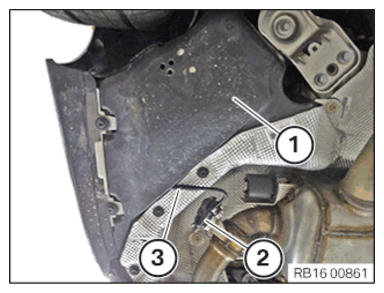

Guide connector (2) through cover (1).
Clip in the cable clip (3).
Connect connectors (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

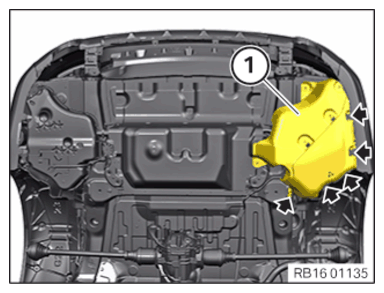

Position the cover (1).

Tighten nuts and bolts (arrows).

TIGHTENING TORQUES SPECIFICATION

Underbody planking on body
Hexagon screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Underbody planking on body
Plastic nut	tightening torque	2.6 Nm

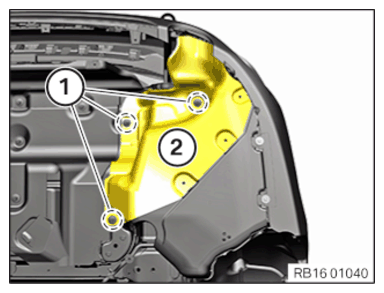

Position heat shield (2).

Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Undershield
Screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
