Installing the exhaust turbocharger (cylinder head removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of the electric wastegate valve controller.
Excessive force when removing and installing a jammed exhaust turbocharger may damage the electric wastegate valve controller.

Do not pull on the electrical wastegate valve controller or on the coupling rod.
Apply force only at the turbine housing and exhaust manifold.
Do not pull on the compressor housing.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Courtesy of BMW OF NORTH AMERICA, INC.

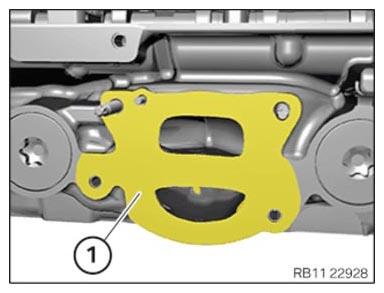

Clean the sealing surface (1) using special tool 0 495 102 (11 4 470).
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
Courtesy of BMW OF NORTH AMERICA, INC.

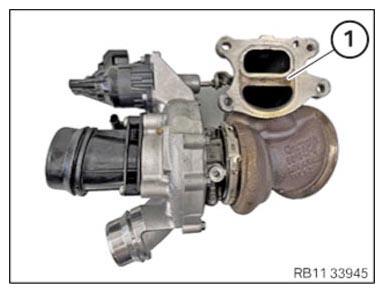

Clean the sealing surface (1) using special tool 0 495 102 (11 4 470).

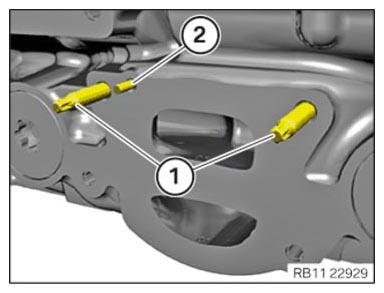

Check the stud bolts (1) and (2) for damage and replace if necessary.
Check the stud bolt (2) for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

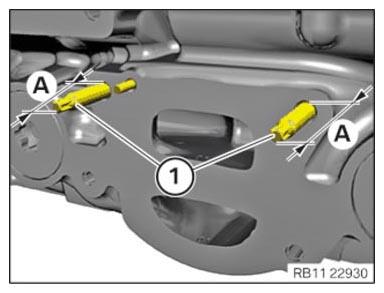

Check insertion depth (A) of stud bolt (1).

TECHNICAL DATA SPECIFICATION

Screw-in depth of upper stud bolts on cylinder head

Screw-in depth

30 mm

Courtesy of BMW OF NORTH AMERICA, INC.

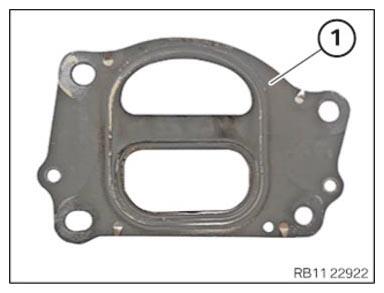

Replace the seal (1).
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

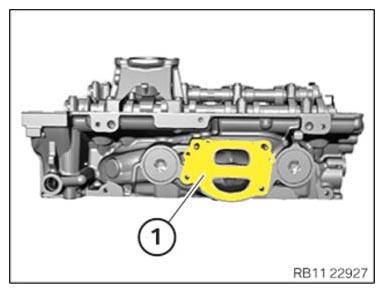

Guide in and install the seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

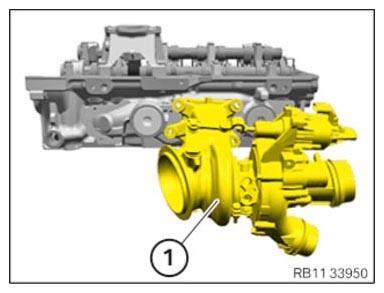

Insert the exhaust turbocharger (1) and position it.
Secure the exhaust turbocharger (1) against falling.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
Replace the nuts (1) and bolts (2).
Parts: Nuts, bolts
Hand-tighten nuts (1).
Hand-tighten the bolts (2).

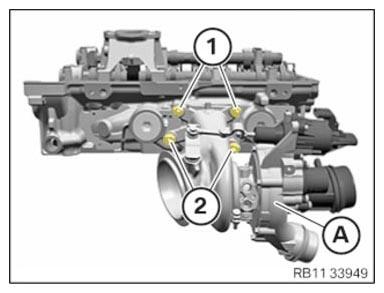

Tighten the nut (1) and the screws (2) on the exhaust turbocharger (A).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Exhaust turbocharger without an integral manifold on the cylinder head
M7 Replace nuts. Observe tightening sequence.	1. Tightening torque	10 Nm
	2. Tightening torque	18 Nm
	3. Tightening torque	18 Nm
M 7X30 Replace screws. Observe tightening sequence.	1. Tightening torque	10 Nm
M 7X30 Replace screws. Observe tightening sequence.	2. Tightening torque	90°
