Installing the bracket for the electric coolant pump on the component carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

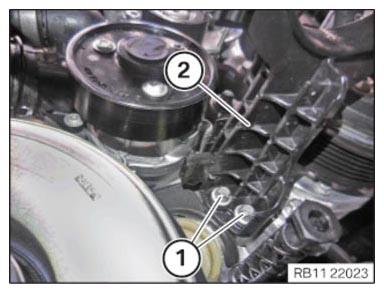

- Feed in and position the holder (2) of the electric coolant pump.

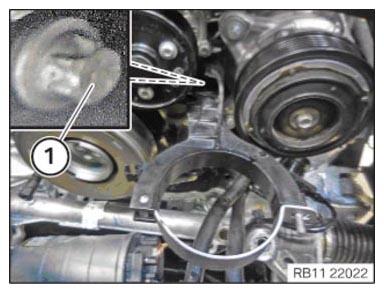

- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Electric coolant pump holder on component carrier M6X20 tightening torque 8 Nm - Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Electric coolant pump holder on component carrier M6X20 tightening torque 8 Nm
