Install the spring strut

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

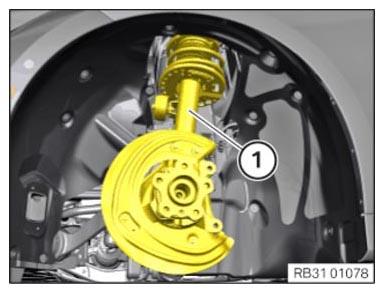

Position the spring strut (1) with the swivel bearing in the wheel well.

Courtesy of BMW OF NORTH AMERICA, INC.

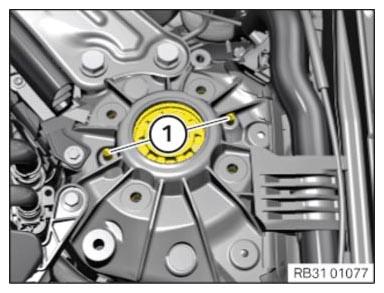

Observe the correct positioning of the pin (1) of the support bearing on strut tower.

Courtesy of BMW OF NORTH AMERICA, INC.

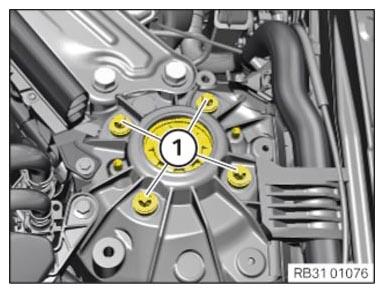

Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Nut and locknut/self-locking nut
M8 Replace screws.	Joining torque	28 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
