Connecting the coolant line to the high-temperature coolant radiator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

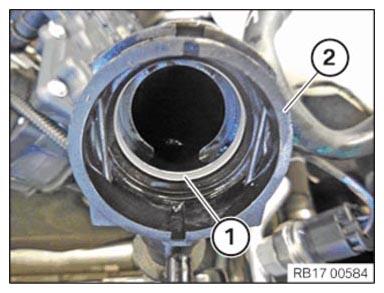

Check the sealing rings (1) of the coolant lines (2) for damage and replace them if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

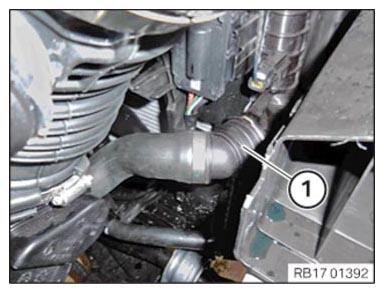

Connect the bottom right coolant hose (1) to the high-temperature coolant radiator and audibly lock it into position.

Courtesy of BMW OF NORTH AMERICA, INC.
