Closing the service opening

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replace the sealing cap of the floor panel.
Parts: Sealing cap of the floor panel

There is a risk of leaks if the sealing cap of the floor panel is reused.

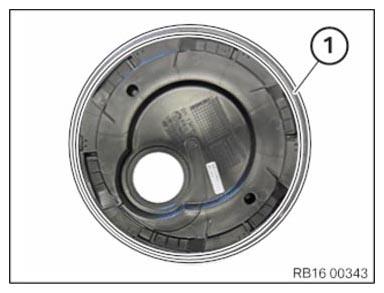

Coat the seal in the area (1) with lubricant (refer to applicable BMW parts catalogue).
INSTALLATION AID SPECIFICATION

Lubricants G14 900 ml, Can 83232360412

Courtesy of BMW OF NORTH AMERICA, INC.

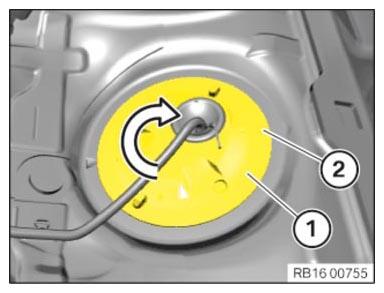

Lock sealing cap (1) in place in the arrow direction up to the stop.
Mark (2) must point forwards in the driving direction.

Courtesy of BMW OF NORTH AMERICA, INC.

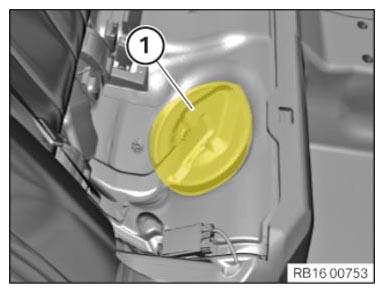

Close the floor in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
