Attaching the spring strut on the swivel bearing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

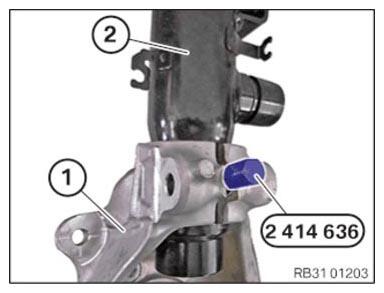

Spread the swivel bearing (1) with the special tool 2 414 636.
Correctly align the positioning pin on the spring strut (2) with the gap on the swivel bearing (1).
Slide spring strut (2) into swivel bearing (1) up to the stop.
Remove the special tool 2 414 636.

Courtesy of BMW OF NORTH AMERICA, INC.

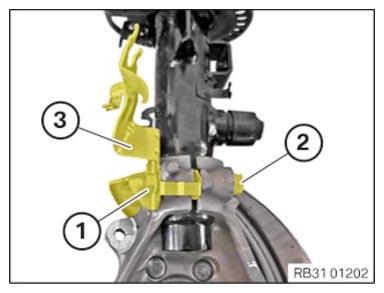

Position holder (3) on the swivel bearing.
Replace the screw (2) and the nut (1).
Parts: Screw, nut
Insert screw (2) and guide on the nut (1).

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Spring strut to swivel bearing
M10 Replace screw and nut. Tightening via screw.	Tightening torque	60 Nm
	Angle of rotation	180°

Courtesy of BMW OF NORTH AMERICA, INC.
