41 00 Body Technical Data
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
41 00 TECHNICAL DATA OVERVIEW
| Air drying time after the order | ||
| Betawipe 4800 | 2 min | |
| Filler S1 | ||
| Processing time 20°C |
90 min | |
| Processing time 30°C |
60 min | |
| Curing time 60°C |
60 min | |
| Storage | 15°C... 25°C | |
| Shelf life (observe expiration date on the cartridge) | 12 Monate | |
| Gap dimension between door window glass and rear side window | ||
| 1 front door; 2 side sill trim panel | a | 8.0 +1.3-1.3 mm |
| b | 0 +1.7-0.7 mm | |
| Gap dimension from hood to bumper cover | ||
| 1 hood; 2 bumper cover | a | 3.5 +1.2-1.2 mm |
| b | 1.0 +1.5-1.5 mm | |

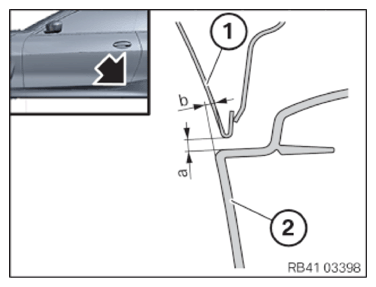

| Gap dimension front door to door sill trim panel | ||
| 1 front door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| b | 1.6 +1.3-1.3 mm | |

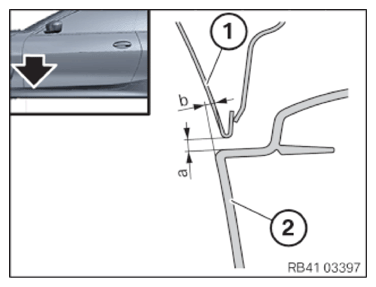

| Gap dimension front door to door sill trim panel | ||
| 1 front door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| b | 0 +1.3-1.3 mm | |

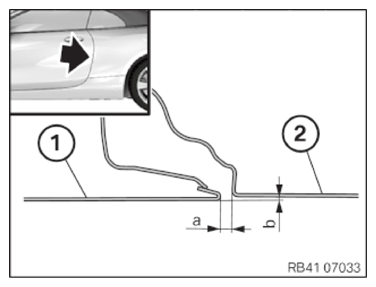

| Gap dimension front door to rear quarter panel | ||
| 1 Front door; 2 rear quarter panel | a | 3.8 +1-1 mm |
| b | 0 +1.3-0.3 mm | |

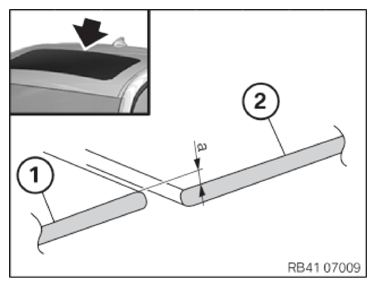

| Gap dimension glass slide/tilt sunroof panel to roof outer skin | ||
| 1 glass slide/tilt sunroof panel; 2 roof outer skin | a | 0.7 +0.75-0.75 mm |
| Gap dimension hood to headlight | ||
| 1 hood; 2 headlight | a | 5.3 +1.8-1.8 mm |
| Gap dimension hood to side panel | ||
| 1 hood; 2 side panel | a | 3.3 +1-1 mm |
| b | 0.5 +1.6-1.6 mm | |

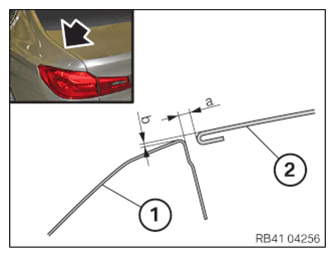

| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 3.5 +1.1-1.1 mm |
| b | 0.3 +1.4-1.4 mm | |
| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 3.5 +1.2-1.2 mm |
| b | -0.6 +1.4-1.4 mm | |

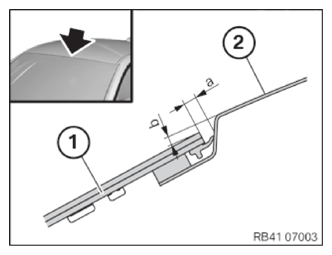

| Gap dimension rear window to roof outer skin | ||
| 1 rear window; 2 roof outer skin | a | 3.2 +1.3-1.3 mm |
| b | 1.5 +1.3-1.3 mm | |
| Gap dimension roof outer skin to glass slide/tilt sunroof panel | ||
| 1 roof outer skin; 2 glass slide/tilt sunroof panel | a | 0.7 +0.75-0.75 mm |
| Gap dimension side panel to A-pillar | ||
| 1 side panel; 2 A-pillar | a | 2.8 +1.2-1.2 mm |
| b | 0.7 +1.2-1.2 mm | |

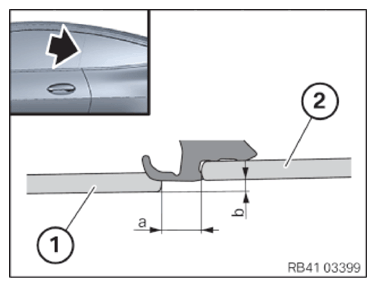

| Gap dimension side panel to front door | ||
| 1 Side panel; 2 front door | a | 3.8 +1-1 mm |
| b | 0.5 +0.8-0.8 mm | |
| Gap dimension trunk lid to rear bumper panel | ||
| 1 trunk lid; 2 rear bumper panel | a | 5.1 +1.5-1.5 mm |
| Gap dimension windshield to roof outer skin | ||
| 1 windshield; 2 roof outer skin | a | 4.3 +1.2-1.2 mm |
| b | 3.6 +1.3-1.3 mm | |
